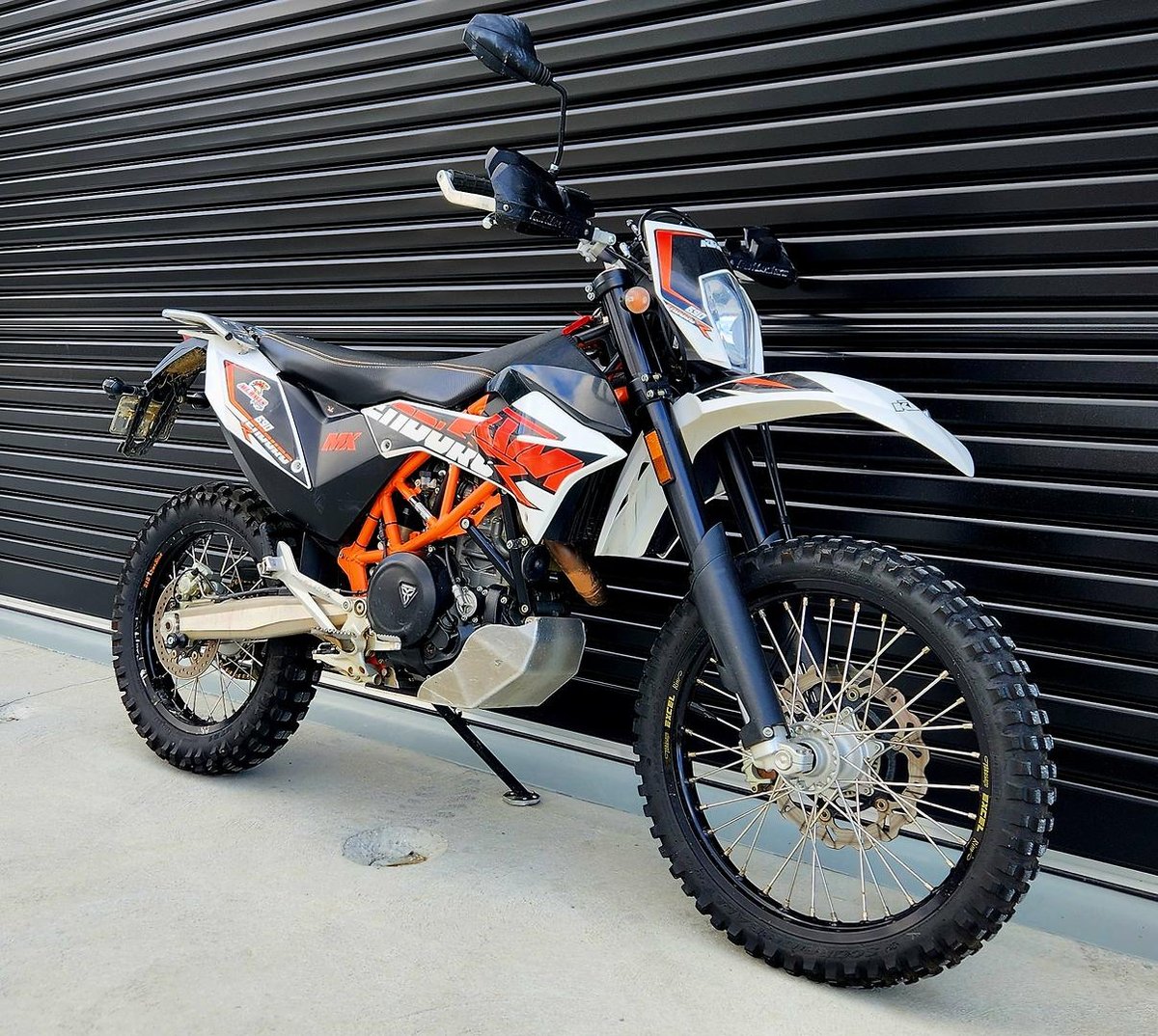

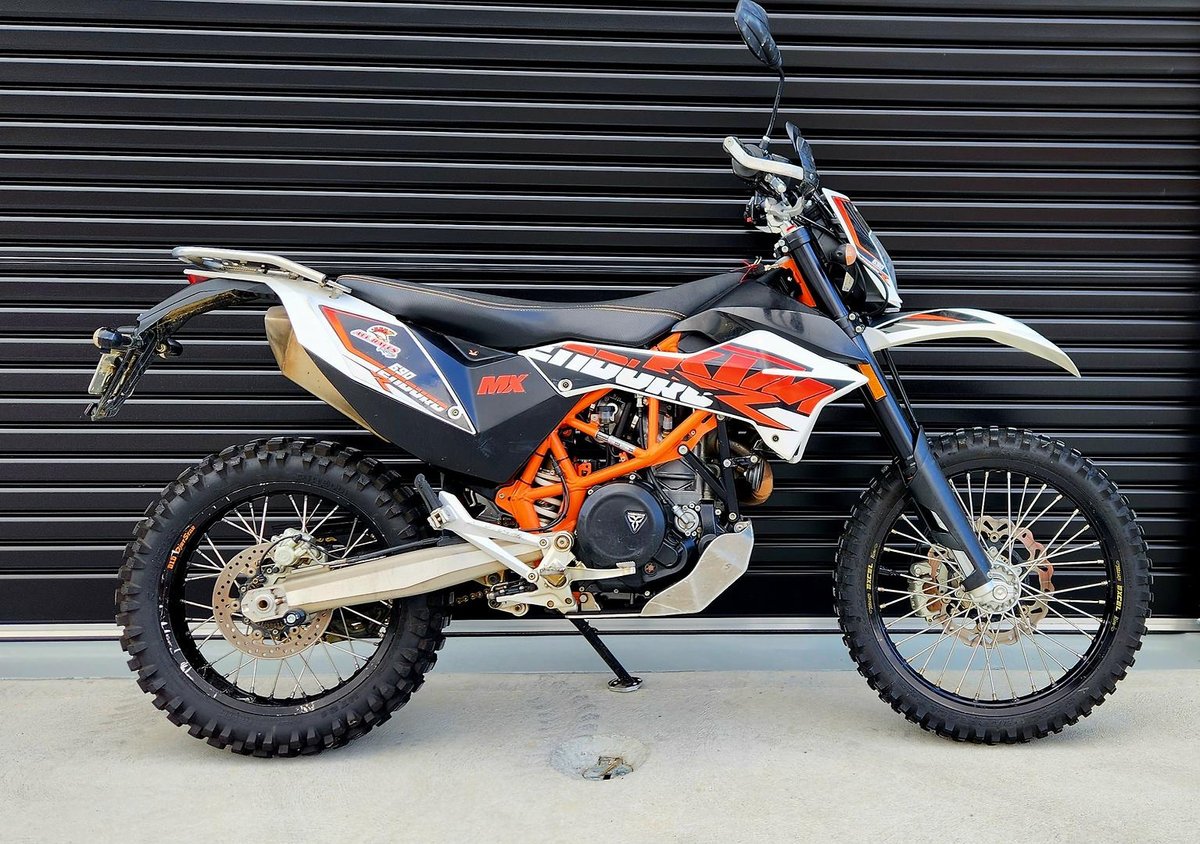

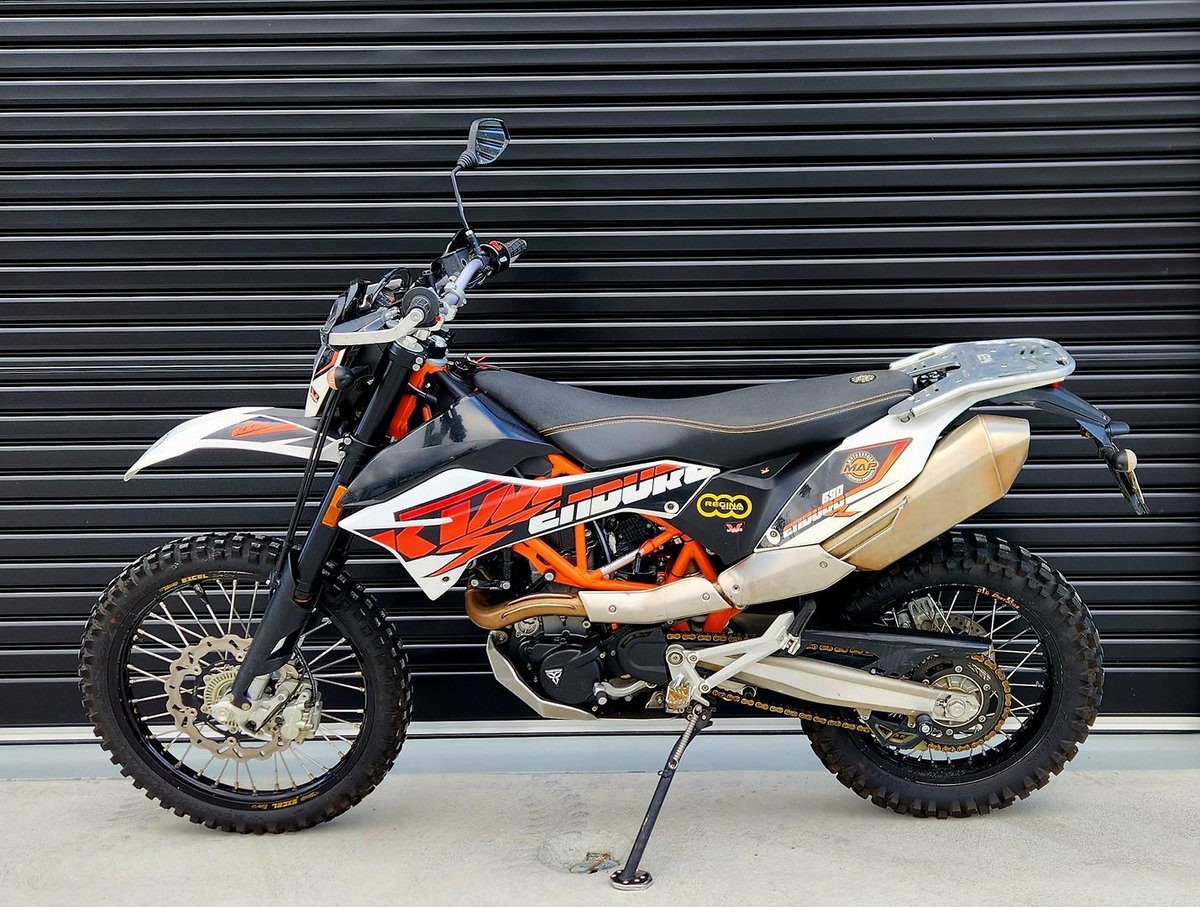

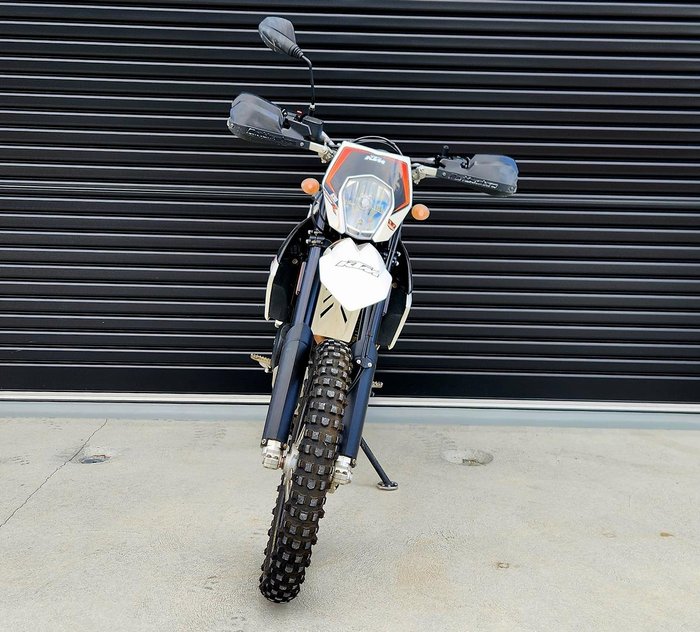

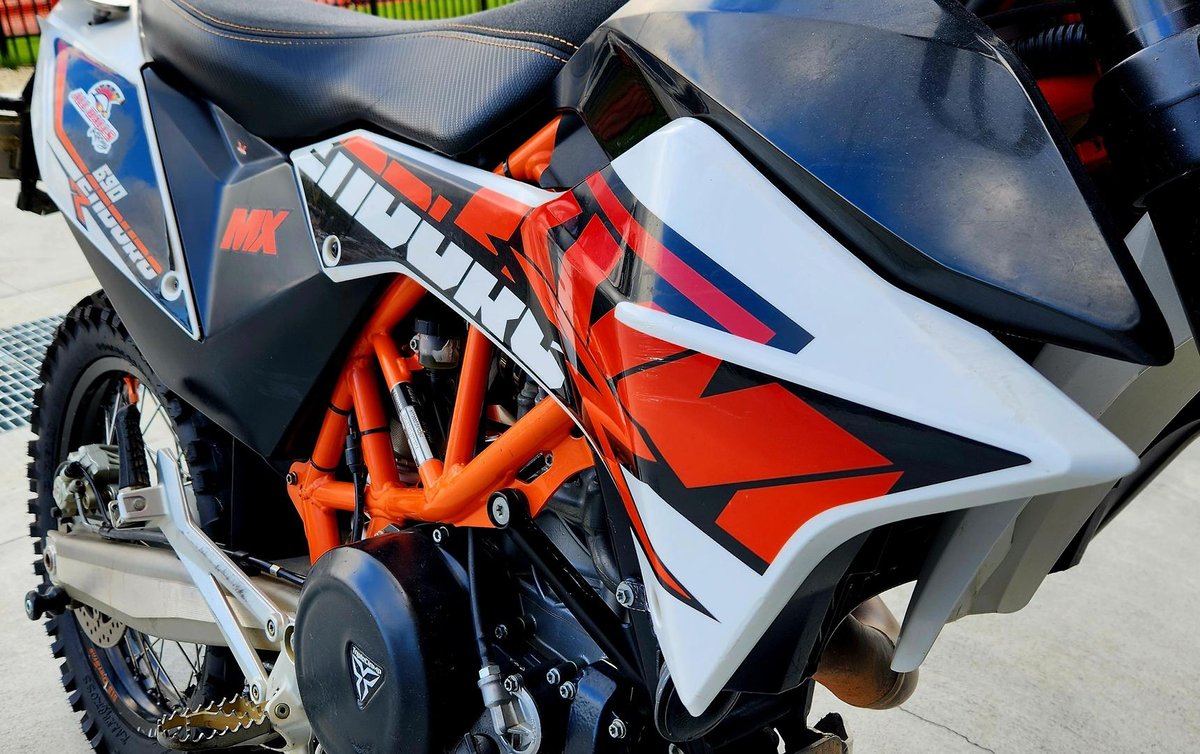

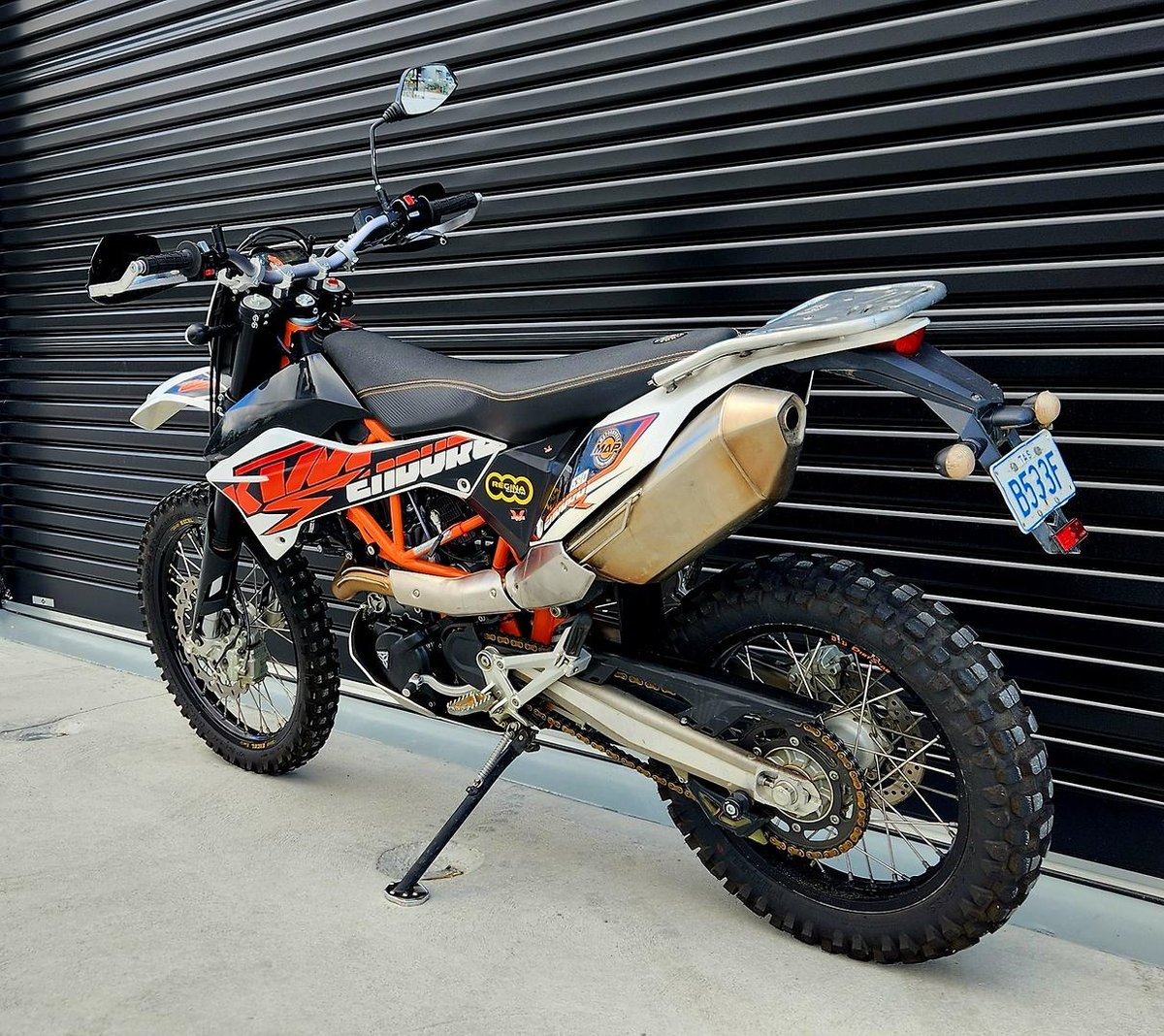

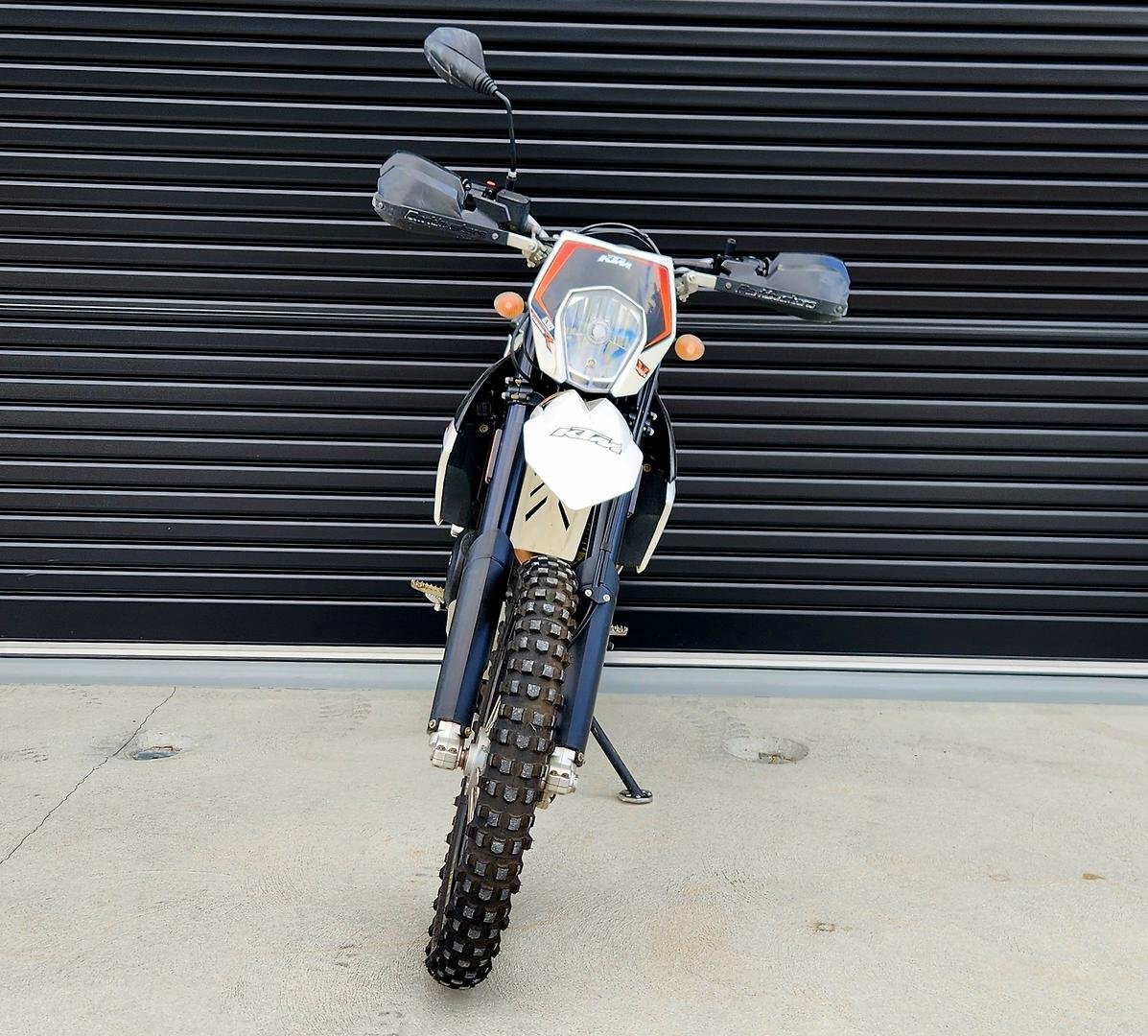

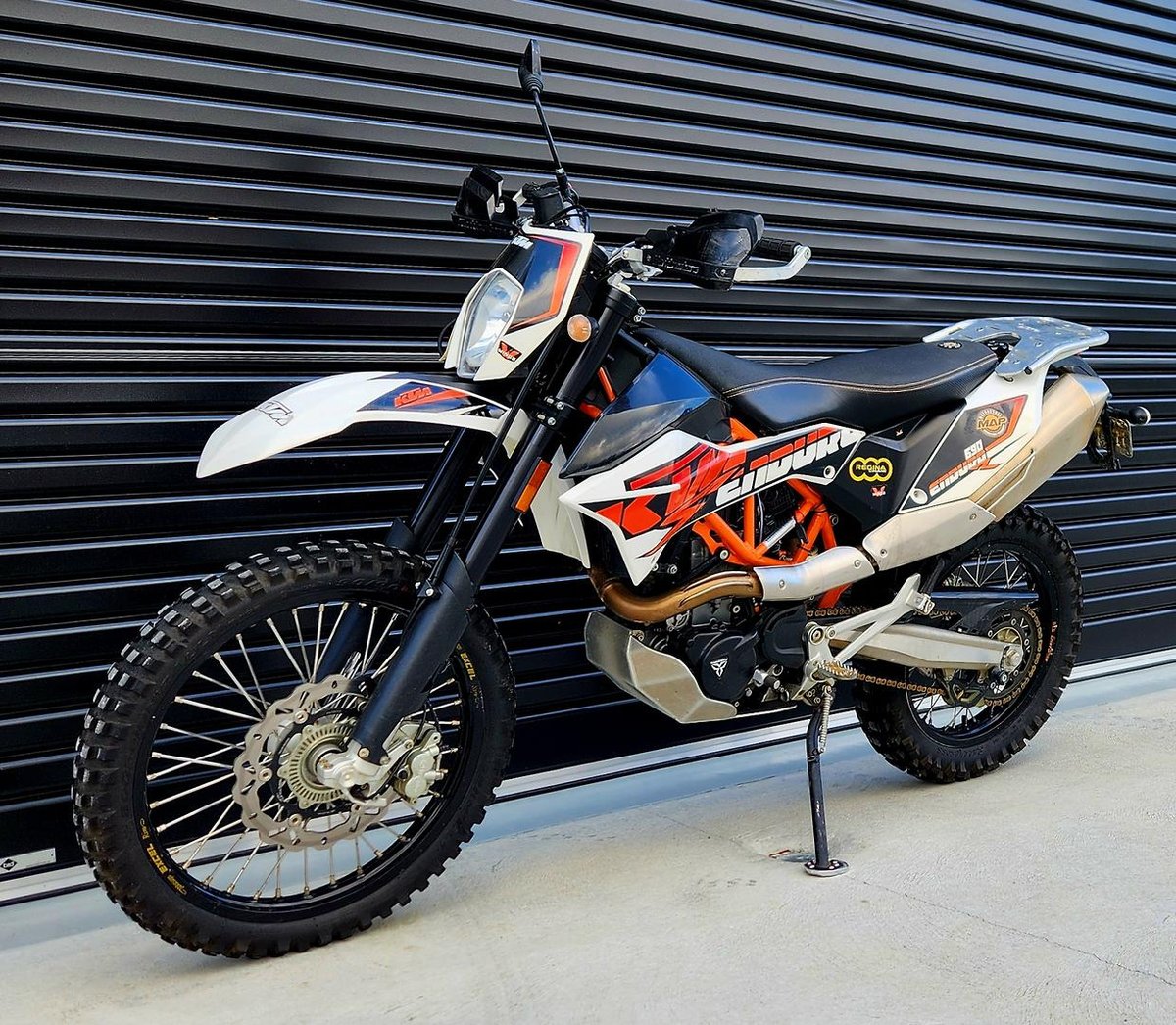

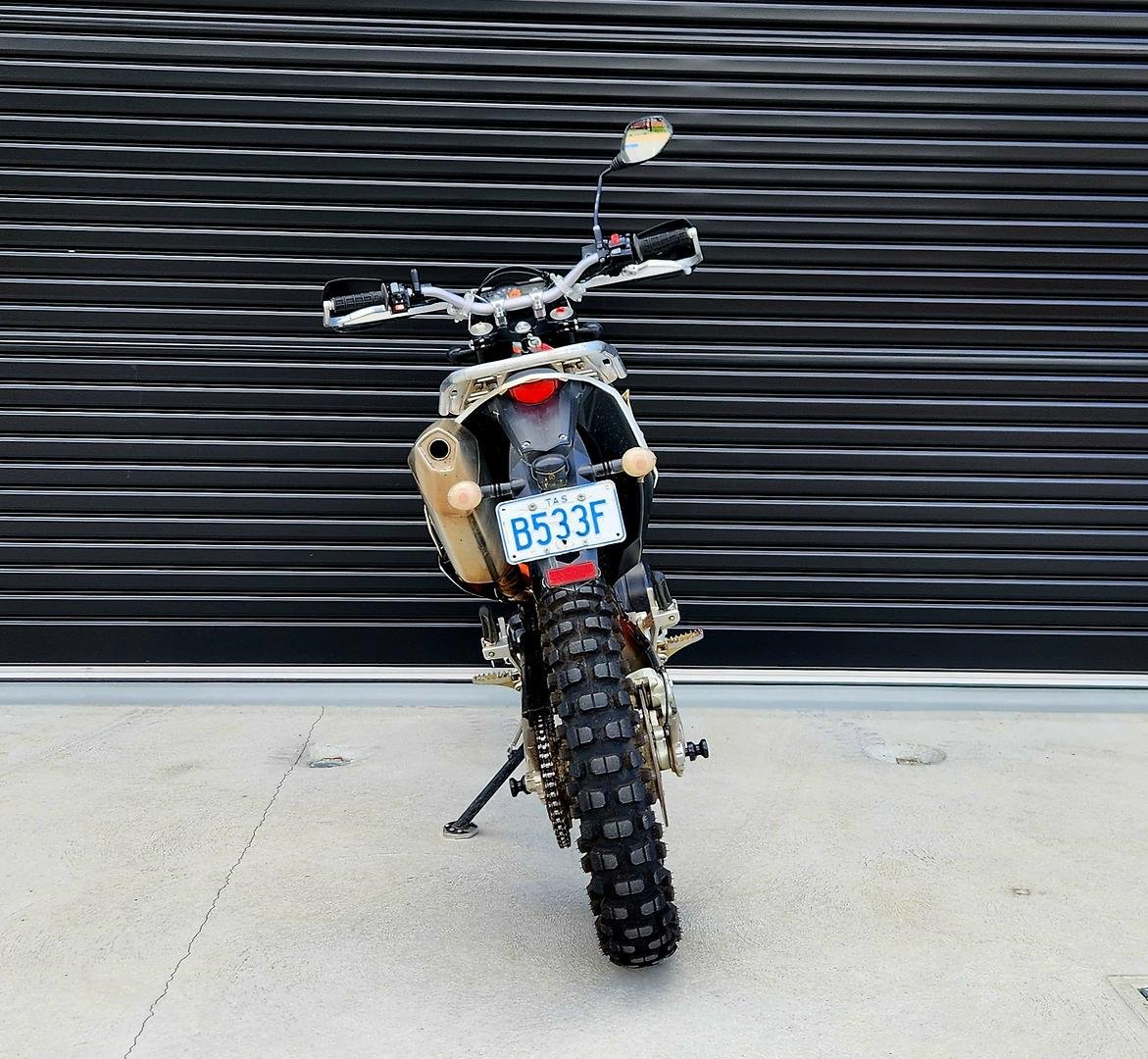

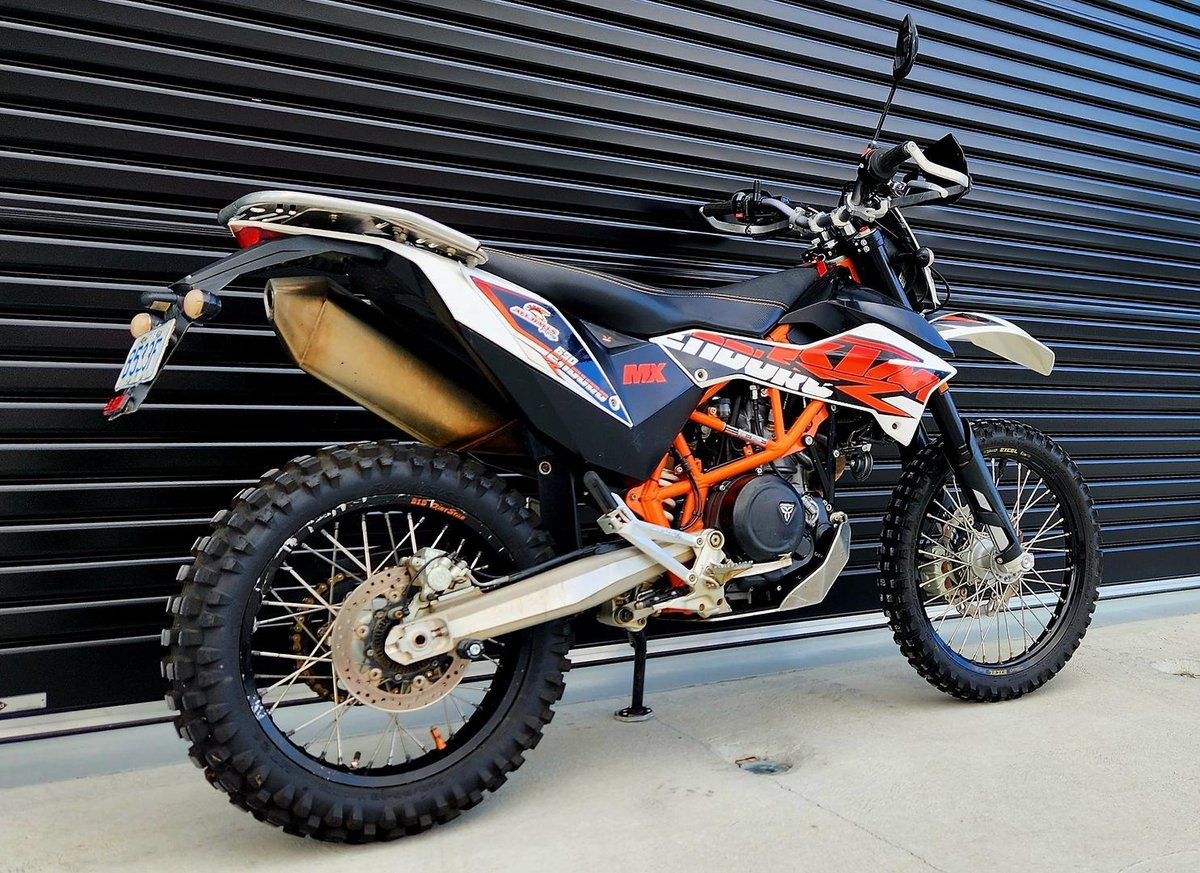

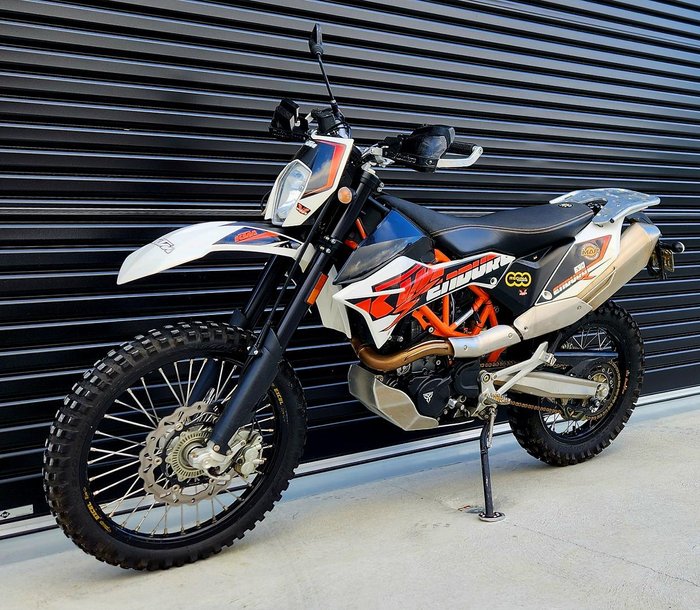

2018 KTM 690 Enduro R Enduro

• EngineSize: 690
• EngineType: Piston
• FuelCapacity: 12
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Adventure Touring (751 - 10000cc)
• Engine Config: Vertical
• Engine Stroke: 4
• Bore: 102mm
• Stroke: 84.5mm
• Cam Type: SOHC (Single Over Head Cam)
• Valves Per Cylinder: 4
• Compression Ratio: 12.6:1
• Induction System: Aspirated
• Carburettor: EFI - Electronic Fuel Injection; RbW
• Cooling: Liquid
• Maximum Power: 49.0kW
• Ignition: Electronic
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Engine
• Recommended RON: 95
• Gear Change Method: Left foot lever
• Clutch Type: Wet; Multi-disc; APTC Slipper; Hydraulic

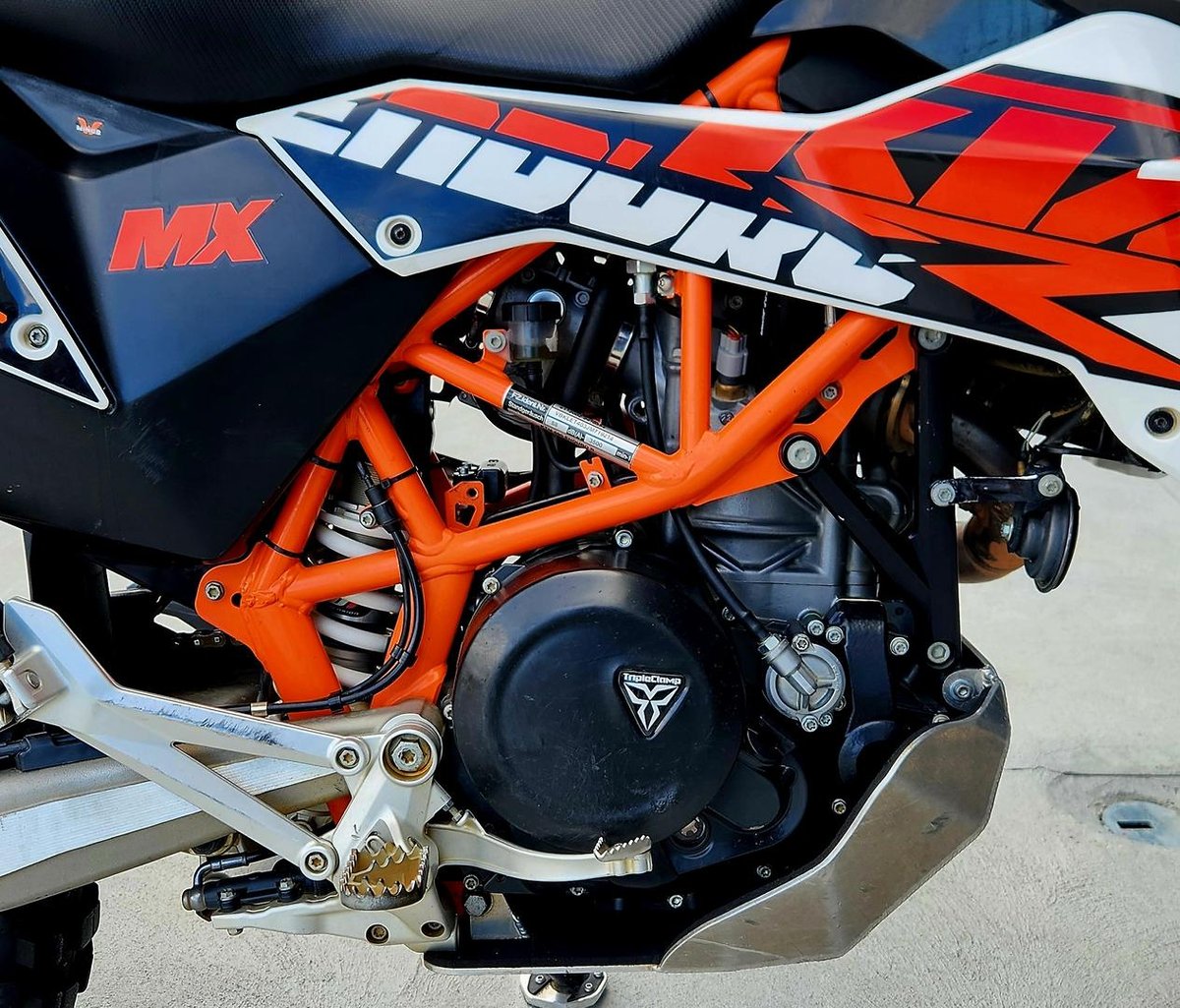

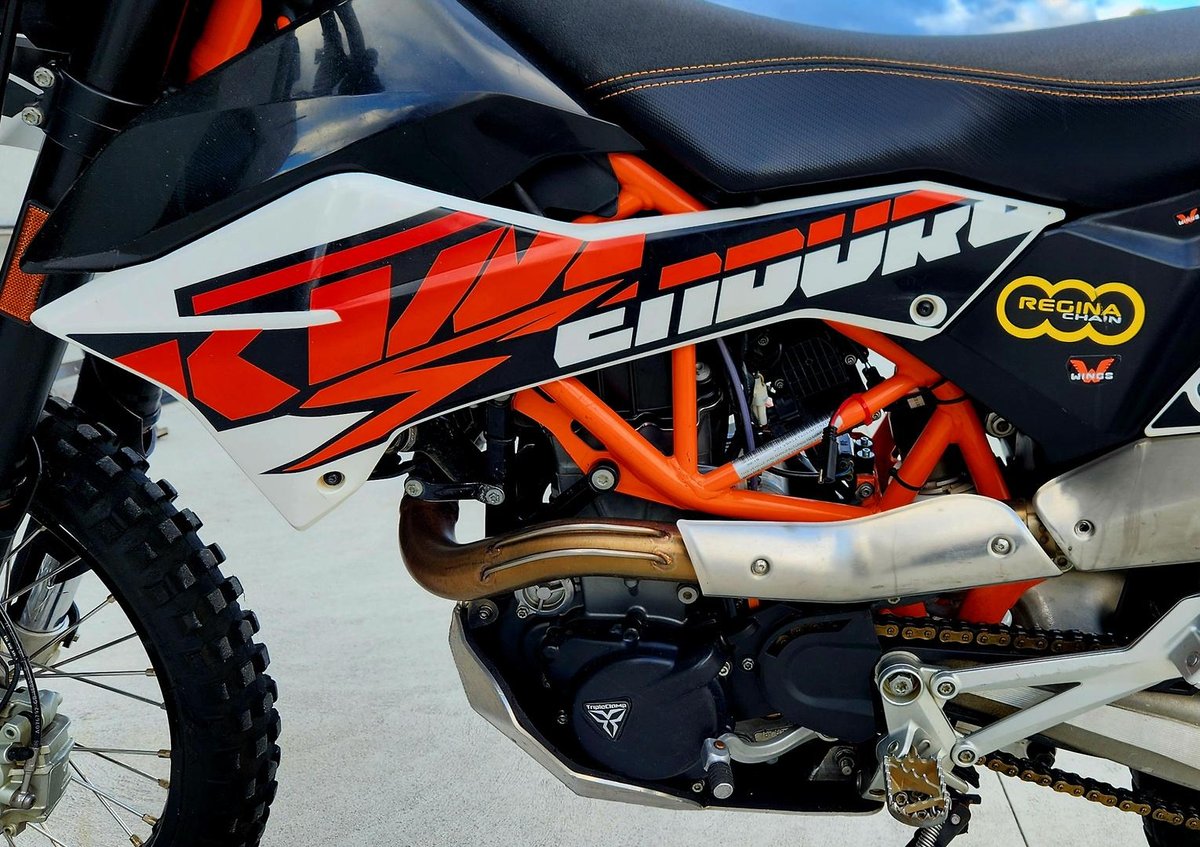

• Frame Design: Trellis
• Side Stand: Standard
• Front Suspension: 48mm WP Upside down 4860 D48/26 MA fork; Separate damping circuits (LH Compression damping/RH Rebound damping) Independent adjustment;Black lower forkleg protectors
• Front Suspension Travel: 250.0mm
• Rear Suspension: Pro-Lever linkage; WP pressurised gas monoshock; Adjustable high & low speed compression
• Rear Suspension Travel: 250.0mm
• Swingarm Type: Dual Sided

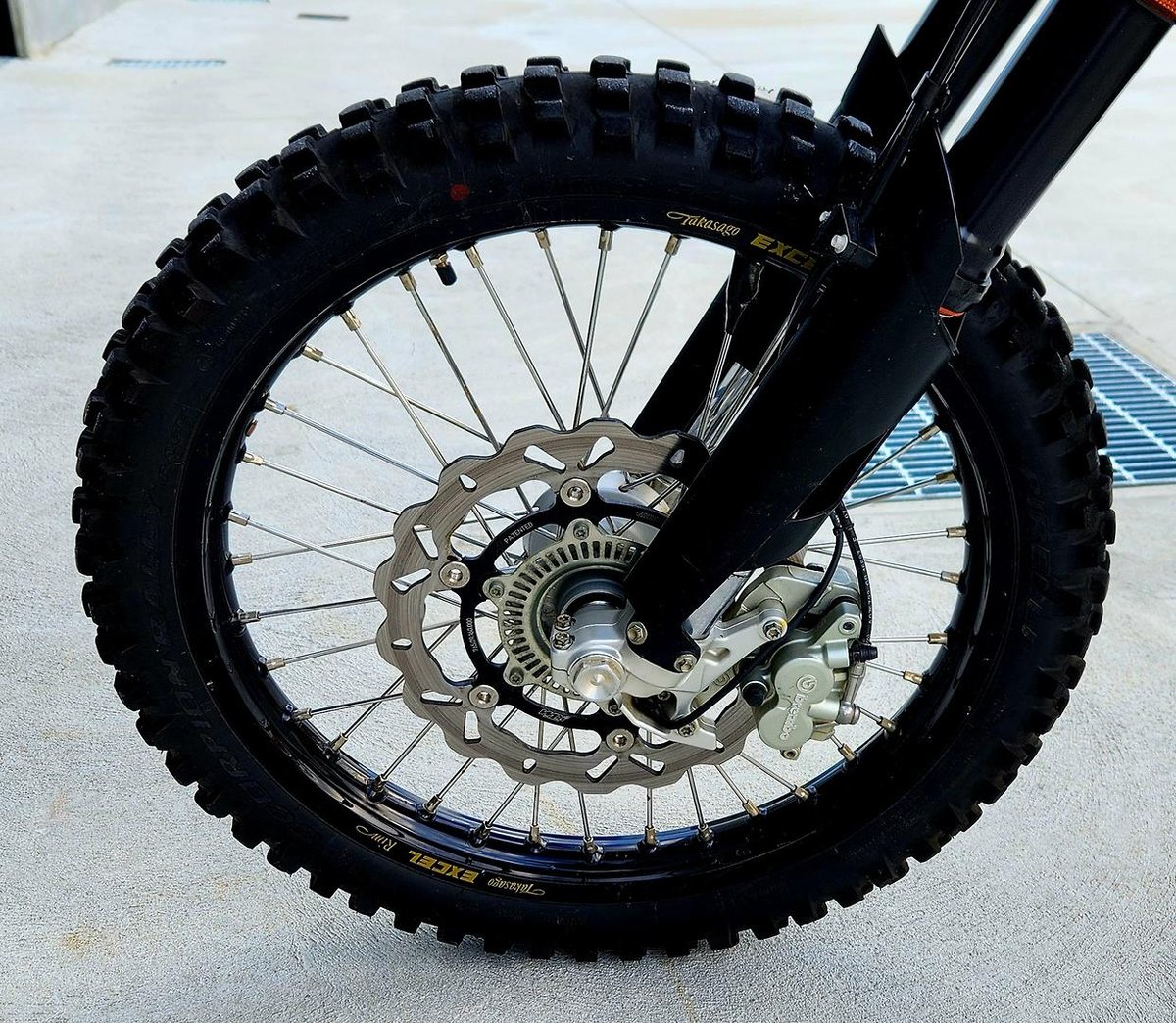

• Front Brake Description: Single petal disc, Brembo floating caliper, Hydraulic; Bosch 9M+ ABS
• Front Brake Caliper(s): Double Piston
• Front Brake Diameter: 300.0mm

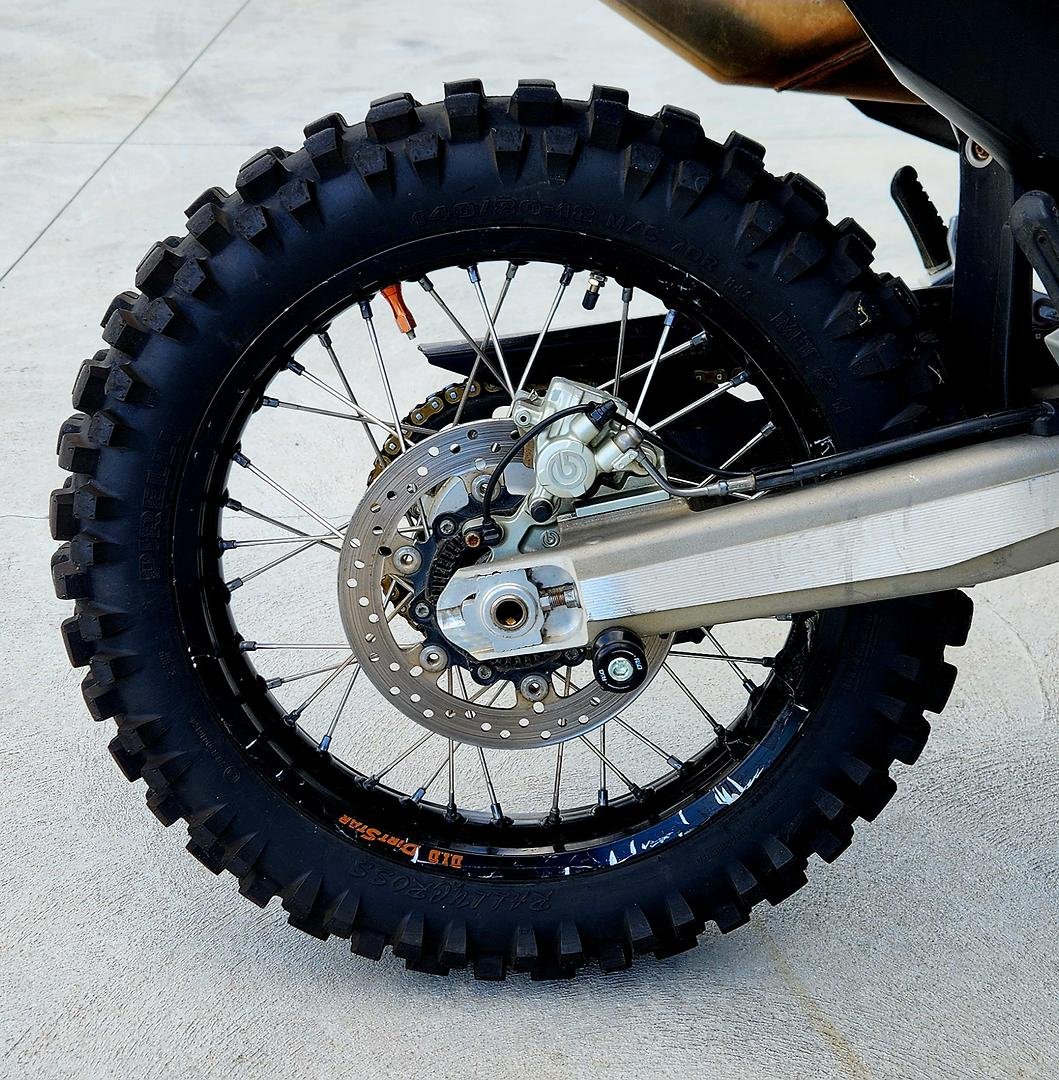

• Rear Brake Description: Single petal disc, Brembo; Hydraulic (Optional ABS)
• Rear Brake Caliper(s): Single Piston
• Rear Brake Diameter: 240.0mm
• ABS: Standard
• Linked Braking System: Not Available

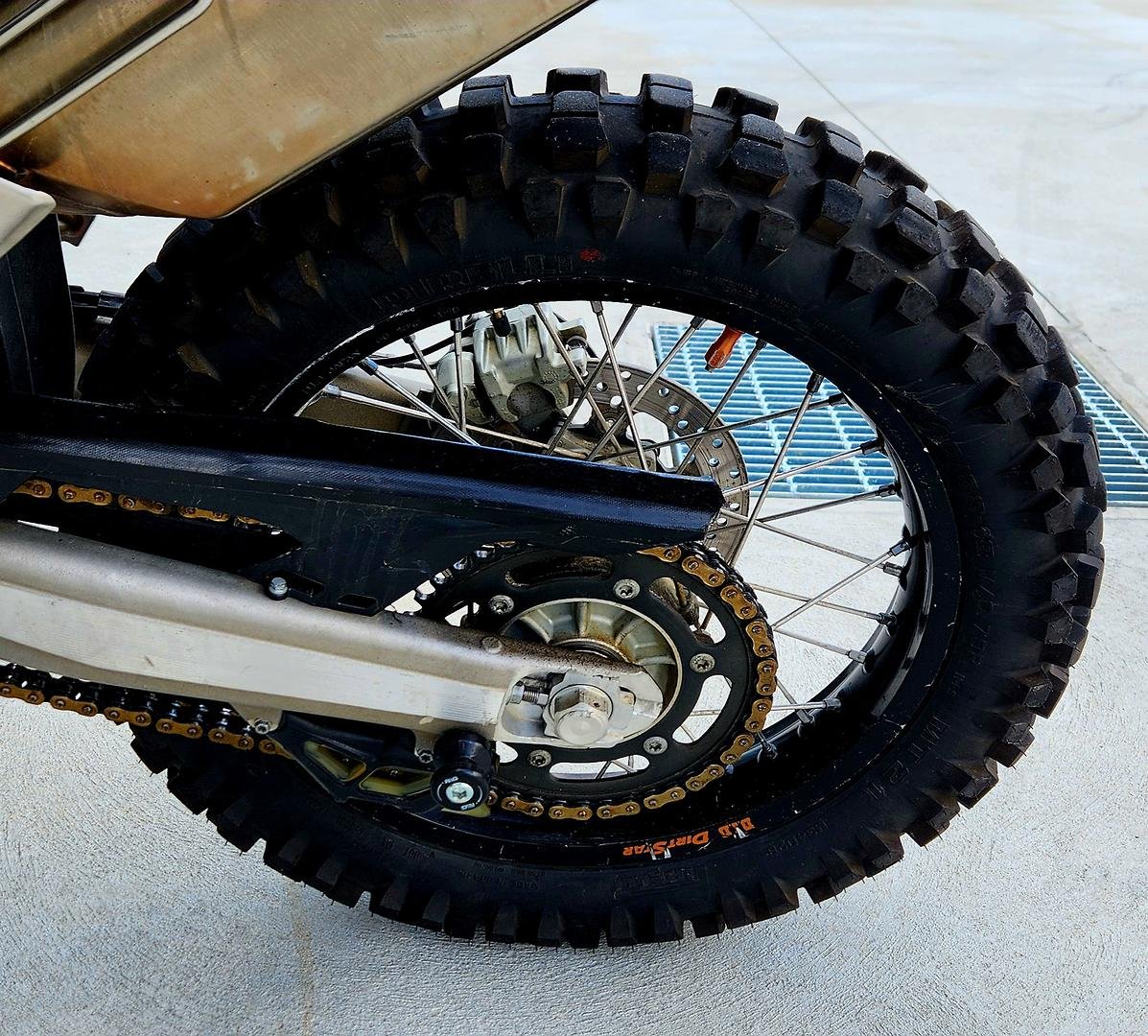

• Wheel Type: Black rims; Laced-spokes

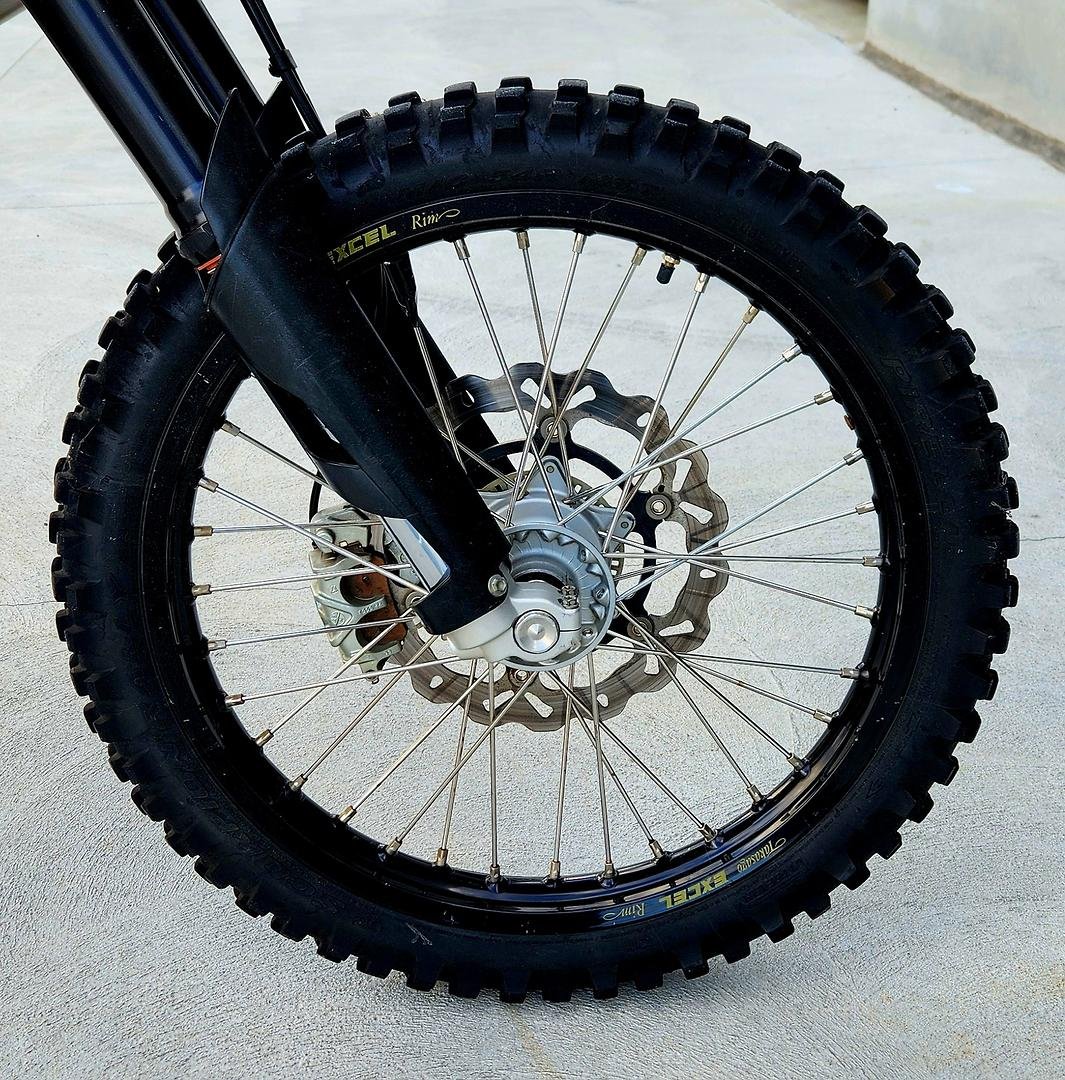

• Wheel Size Front: 1.85x21"
• Wheel Size Rear: 2.5x18"
• Rear Tyre: 140/80-18" (70S) Metzeler Enduro 3 Sahara, Tubeless
• Front Tyre: 90/90-21" (54S) Metzeler Enduro 3 Sahara, Tubeless
• Wheelbase: 1504mm

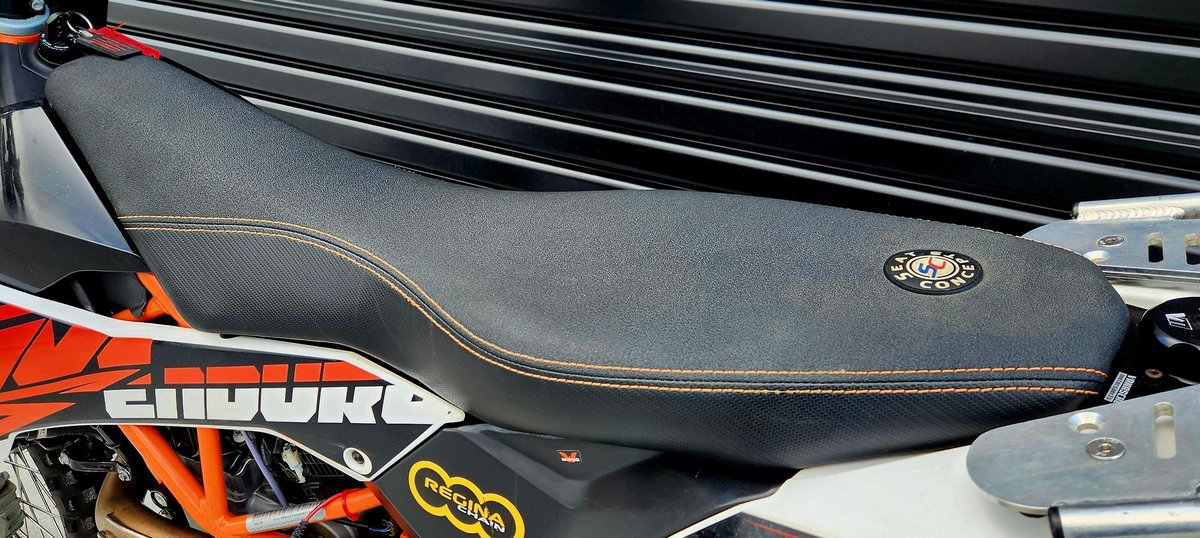

• Seat Height: 910mm
• Seating Capacity: 1
• Traction Control: Not Available
• Lock Type: Ignition/Steering
• Windscreen: Optional

_{Please confirm all features with dealer.}
